2.7 volt to 5 volt boost converter

            This circuit used to convert 2.7 volt to 5 volt by using LTC3440, this IC is a high efficiency fixed frequency Buck-Boost DC/DC converter.




Locate the D1 schottky diode as close to IC as possible

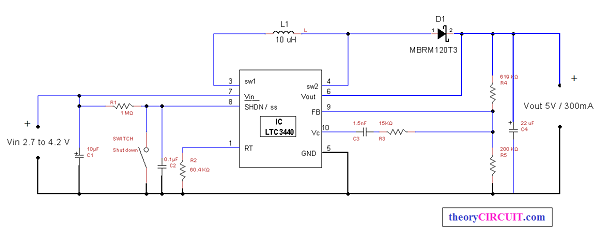

Circuit diagram

2.7-volt-to-5-volt-boost-converter-new

Components List

S.No Name Quantity
1. IC LTC 3440 1
2. Schottky diode MBRM 120T3 1
3. Inductor 10µH 1
4. Capacitor – 10µF/16v, 22µF, 0.1µF, 1.5nF each 1
5. Resistor 1MΩ, 60.4KΩ, 15KΩ, 619KΩ, 200KΩ each 1
6. On/off switch 1

Data sheet You can get IC LTC3440fc data sheet here…
