5 Amp SMD Voltage Regulator

Today Electronic products are shrinking in size and expands in ability and performance. Every electronic product and firmware developers need to pick compact and powerful components for their prototype and product to stand out from competition. In this article we have listed compact 5 Amp SMD Voltage Regulator.




Depends on the requirement we can choose fixed or variable voltage regulators available in TO-252 SMD package. Following SMD Voltage Regulators are reduces the time taken for PCB footprint implementation and it can easily placed in D-Pak or TO-252 Footprint (Refer Datasheet for metrics) .

SMD D-Pak (TO-252) Voltage Regulators

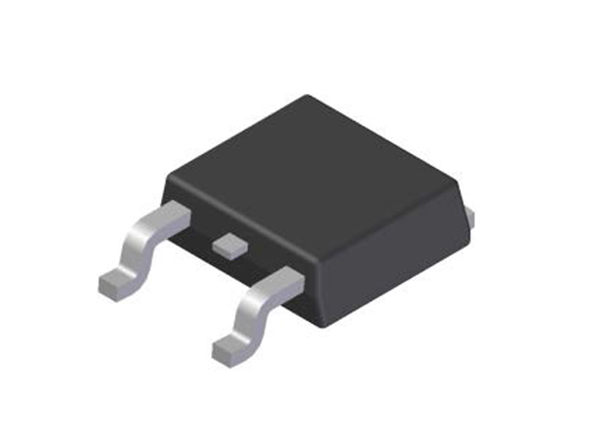

1. AZ1084CD

AZ1084CD from Diodes Incorporated is a Adjustable linear positive voltage regulator with 5 amp current output. It can give variable voltage from 1.25V to 10.5V at 5A current output. This device takes 10mA as a Quiescent (Iq). It has over current and over temperature protection setup.

2. KD1084ADT25R

KD1084ADT25R from STMicroelectronics is a Fixed positive linear Voltage Regulator with 5 amp current output. It can take upto 12 volt as input and gives fixed 2.5 Volt as output with 5A current output. This device takes 10mA Quiescent current. It has Short circuit and over temperature protection setup.

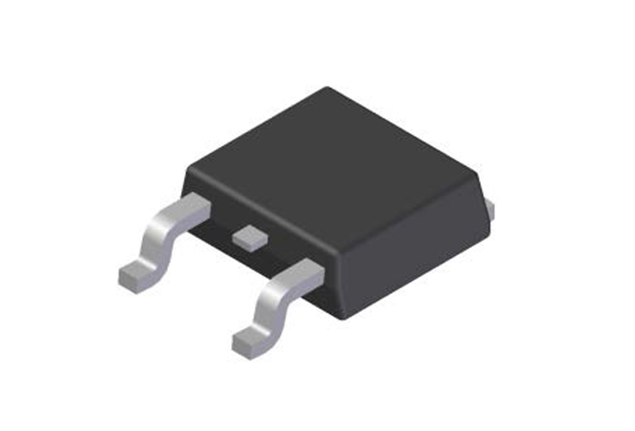

3. AP1084D33L-13

AP1084D33L-13 from Diode Incorporated is a Fixed positive Linear voltage Regulator IC and gives output current upto 5A. It can take 4.7V to 12V as input power supply and gives fixed output voltage depends on the device specifications (1.5V, 1.8V, 2.5V,
3.3V, 5.0V) with 5A current output. This device has built in thermal shutdown option.

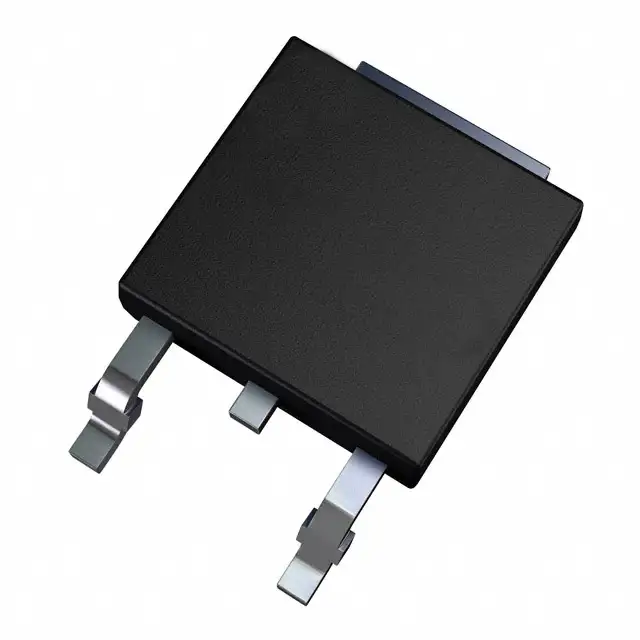

4. FAN1585ADX

FAN1585ADX from ON Semiconductor is a Positive Adjustable Linear Voltage Regulator with 5 amp current output rating. It can take input voltage upto 18V and gives variable output voltage from 1.5V to 3.6V with 5 Amp current output. This device utilizes minimum Quiescent current and has Over current, Over temperature and Short circuit protection features.

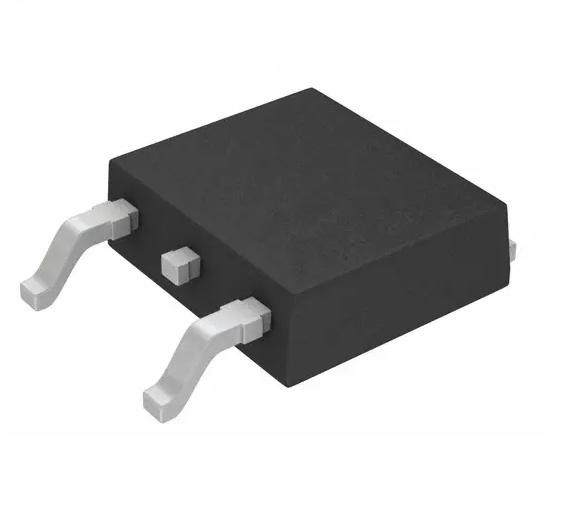

5. IRU1050CD

IRU1050CD from Infineon Technologies is a Positive Adjustable Linear Voltage Regulator IC with 5 amp current output. It can take input voltage upto 7 volt and gives adjustable output voltage from 2.5V to 3.3V with 5A output load current. This device consumes 10mA Quiescent current. It has over current and over temperature protection features.
