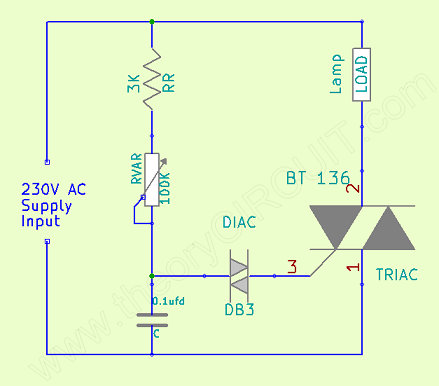

Ac Power Controls circuit using TRIAC.
Components List
| S.No | Name | Quantity |
| 1. | Triac BT 136 | 1 |
| 2. | Capacitor 0.1uF | 1 |
| 3. | Diac DB3 | 1 |
| 4. | Resistor 3K | 1 |
| 5. | Variable Resistor 100K | 1 |
Note: This circuit involves in handling of High voltage AC supply and its lethal, Handle with Extreme Care.
How this circuit wil work, Can explain me?
high-speed solid-state device that can switch and control AC power in both directions of a sinusoidal waveform. Starts to Conduct after blocking stage.
