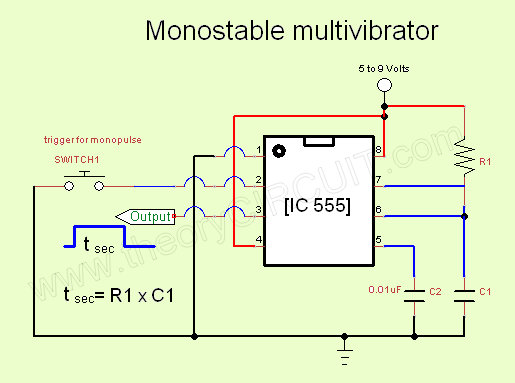

Simple Monostable multivibrator circuit designed by using timer IC 555.
Components List
| S.No | Name | Quantity |
| 1. | IC 555 | 1 |
| 2. | Capacitor 0.01uF | 1 |
| 3. | Push Switch | 1 |
| 4. | Resistor & Capacitor (R1 & C1) | as your requirement |
theoryCIRCUIT – Do It Yourself Electronics Projects
Find every electronics circuit diagram here, Categorized Electronic Circuits and Electronic Projects with well explained operation and how to make it procedure and then New Circuits every day, Enjoy and Discover electronics.
How can i change the duty cycle at 25% ?
Hi monme, Tune the Timing resistor and timing capacitor and calculate using monostable multivibrator formula to get desired duty cycle.
Use Monostable Multivibrator Calculator and Change the Timing Resistor and Capacitor to achieve 25% duty cycle.
