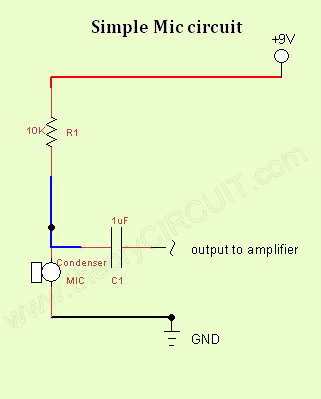

Simple condenser mic circuit to convert Acoustic sound signal into electric audio signal.
This Simple mic circuit with pre amplifier circuit converts Acoustic Sound wave into Electric Audio wave suitable to interface with power audio amplifiers.
Components List
| S.No | Name | Quantity |
| 1. | Condenser Mic | 1 |
| 2. | Resistor 10KΩ | 1 |
| 3. | Capacitor 1uF | 1 |
Components List-Mic circuit with pre-amplifier
| S.No | Name | Quantity |
| 1. | Condenser Mic | 1 |
| 2. | Resistor 10KΩ Resistor 100KΩ |
2 1 |
| 3. | Capacitor 1uF | 2 |
| 3. | Transistor 2N3904 | 1 |
