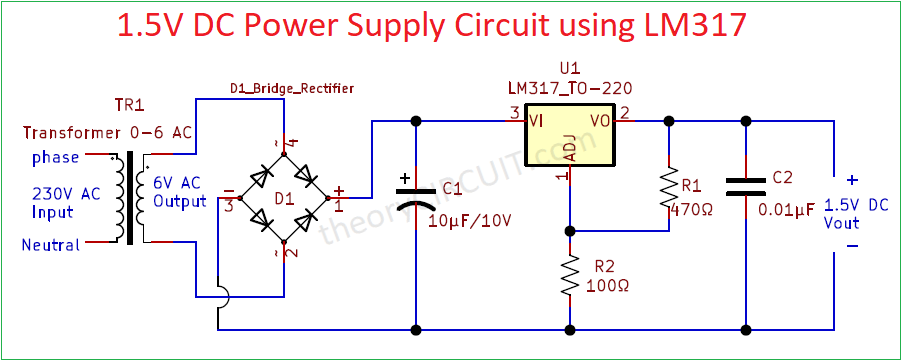

We Use Power Management Integrated Circuit (PMIC) for Complex Electronic Circuits to Supply Required Power. If we Design simple Standalone circuit with few low power electronic components then we need Individual Standalone power source or Voltage Regulator circuit. Here Simple 1.5V DC Power Supply Circuit designed by using IC LM317 to give Regulated Constant 1.5V DC power supply.
This Simple 1.5V DC Voltage Regulator circuit can be used in any circuit or device that requires constant 1.5V DC supply. Here this circuit converts 230V AC to 1.5V DC with the help of Stepdown transformer, Bridge Rectifier and Voltage Regulator IC LM317.
Components Required (BOM)
|1||TR1||230V to 0-6V AC||0-6V Stepdown Transformer||1|
|4||D1||–||Bridge Rectifier Module||1|
|5||LED1, LED2||Red, Green||–||each one|
Construction & Working
This Circuit designed to convert 230V AC to 1.5V DC, As we know in order to obtain low voltage from high voltage AC we need to use Stepdown transformer. Here 230V AC to 6V AC output Stepdown transformer used. 6V AC supply from secondary winding of step down transformer is directly applied to the Bridge Rectifier module, you can use either bridge rectifier module or four 1N4007 diodes in bridge rectifier form. Here the 6V AC Converted into 6V DC supply then this unfiltered DC applied to the filter capacitor C1 and then filtered DC applied to the Regulator IC LM317 (Package To-220) this IC has three terminals, terminal 1 (Adjust) and terminal 2 (output) are connected with feedback Resistor R1 and R2, by Varying these two Resistors value we can get our desired output voltage from 1.25V to 37V (if we apply enough input voltage to the terminal 3) and output current up to 1.5 Amps.
We Can Calculate Output Voltage of LM317 as,
For this Circuit,
Vout = 1.25(1+ (100/470))
Vout = 1.5V
After filter Capacitor C2, We can get Constant Regulated 1.5V DC supply as output. For Standalone Circuits, you can use LED indicator to know the Input voltage and Output voltage Status.
Circuit Diagram – 1.5V DC Power Supply Circuit with Indicators
Construction and Operation of this circuit is Same as Previous circuit. But here we introduced two LEDs to indicate Input voltage (Red LED) to the Regulator and Output Voltage (Green LED) from the LM317 Regulator.
LM317 is a three terminal Adjustable Voltage Regulator Capable of Supplying up to 1.5 Amps output current and 1.25 to 37 Output voltage.
Pin Configuration of LM317
Most Interesting thing about this Regulator is we just need two external Resistors to Adjust the output voltage. This Regulator gives good voltage Regulation and current limiting and also thermal overload protection.
